产品特性Product Features
电气规格Electrical Specifications

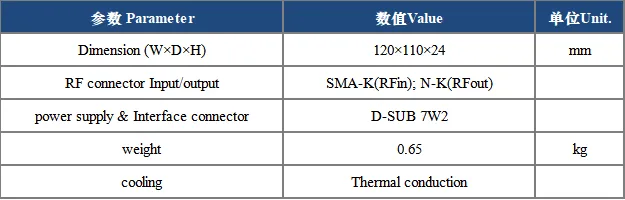

机械规格Mechanical specification
输入/输出接口I/O Interface
外形图outline drawing(mm)

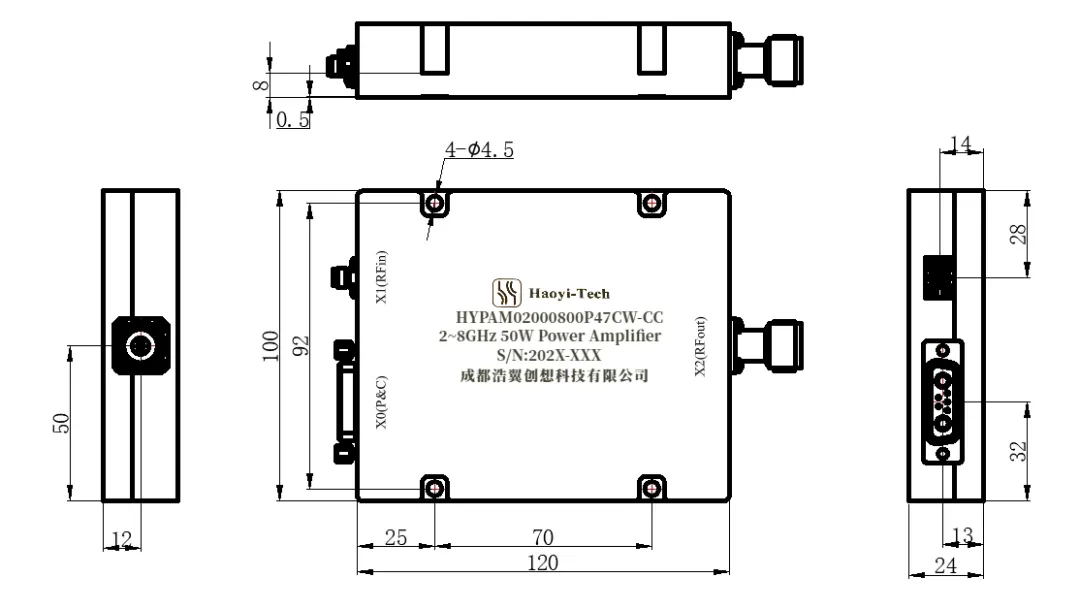

Fig.1. 2~8GHz 50W Power Amplifier(Without heat-sink)

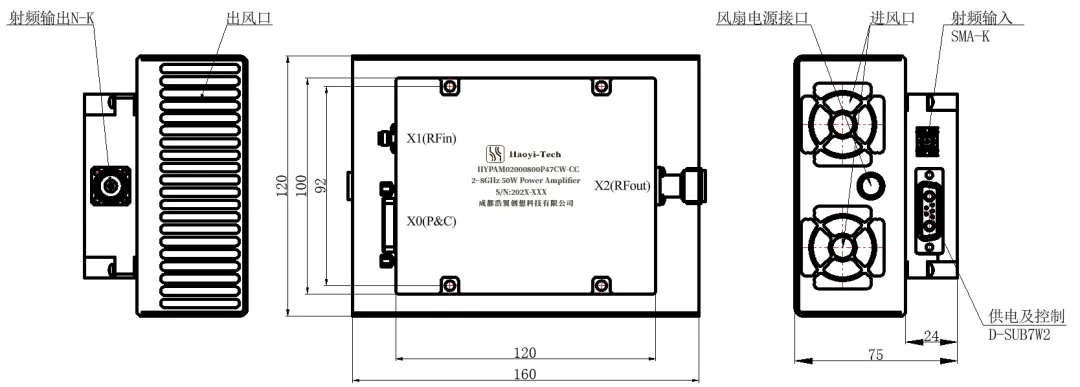

Fig.2. HYPAM02000800P47CW-CC-H (With heat-sink)

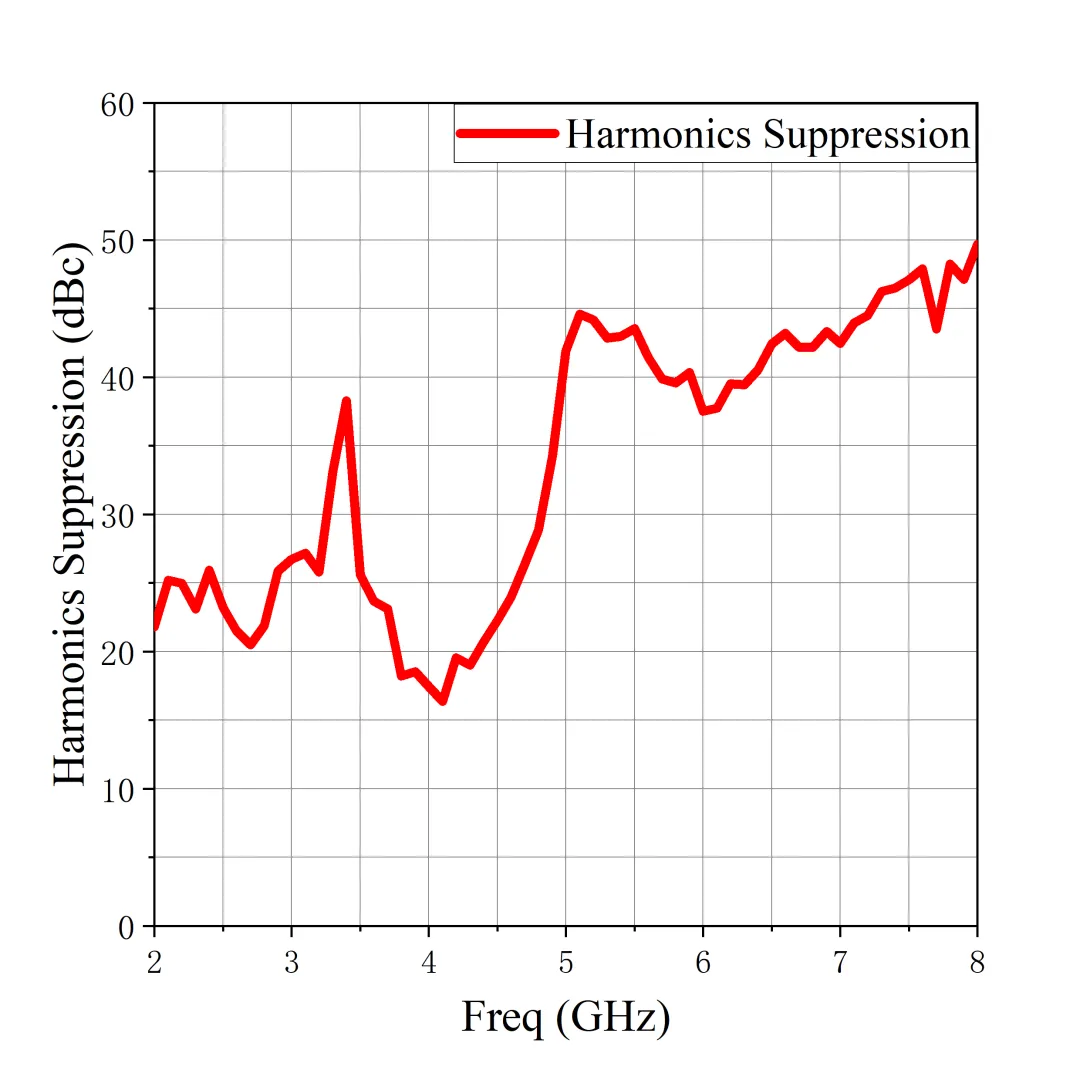

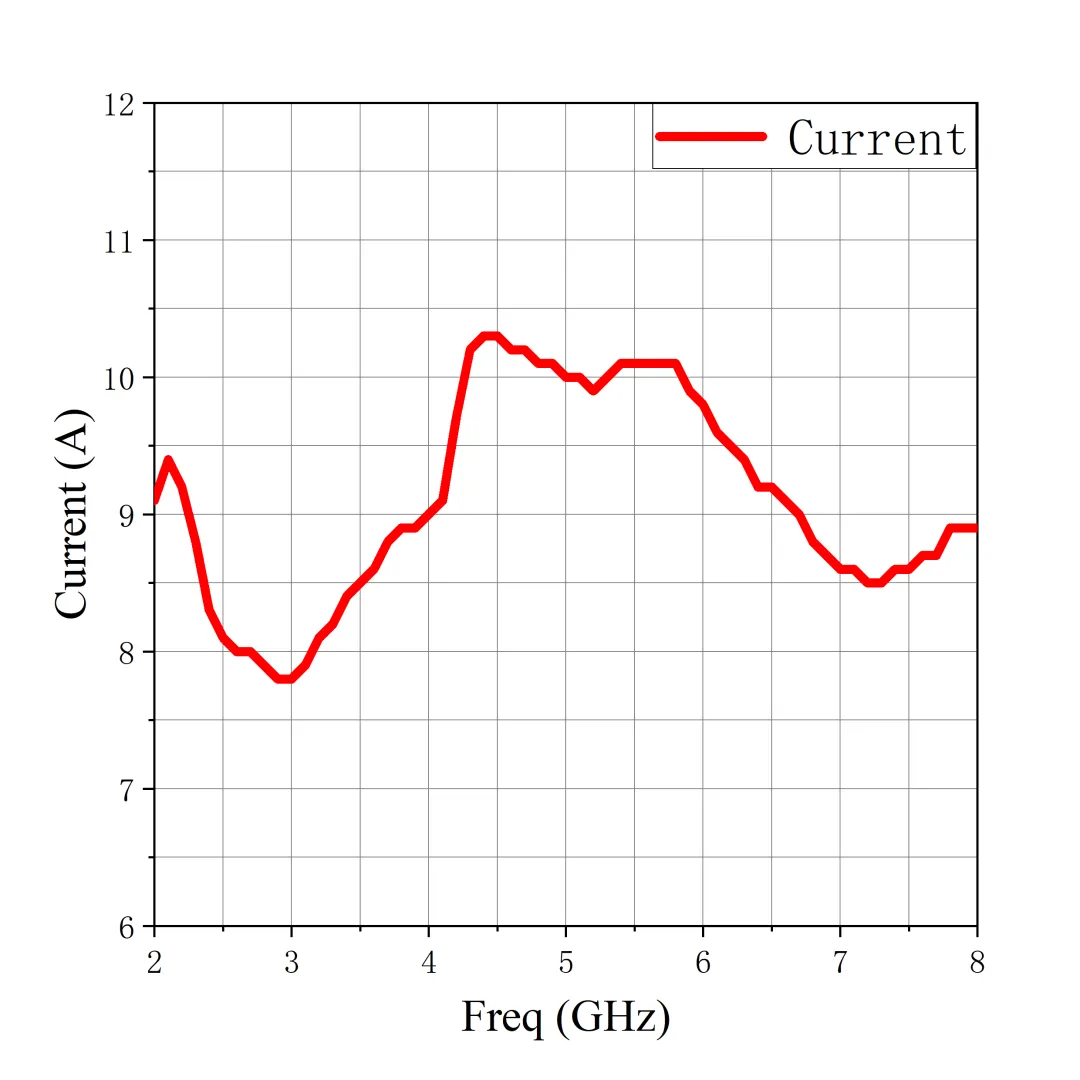

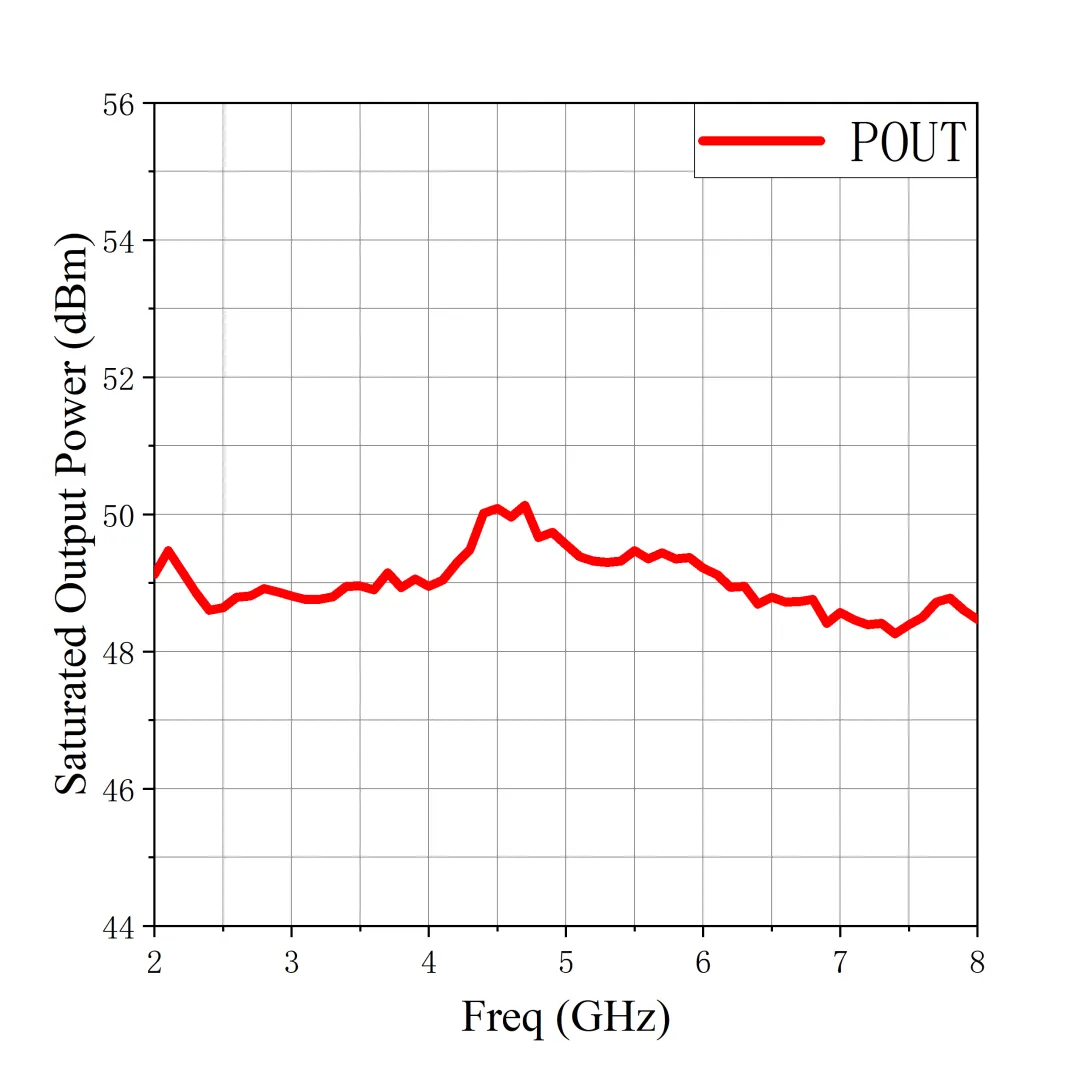

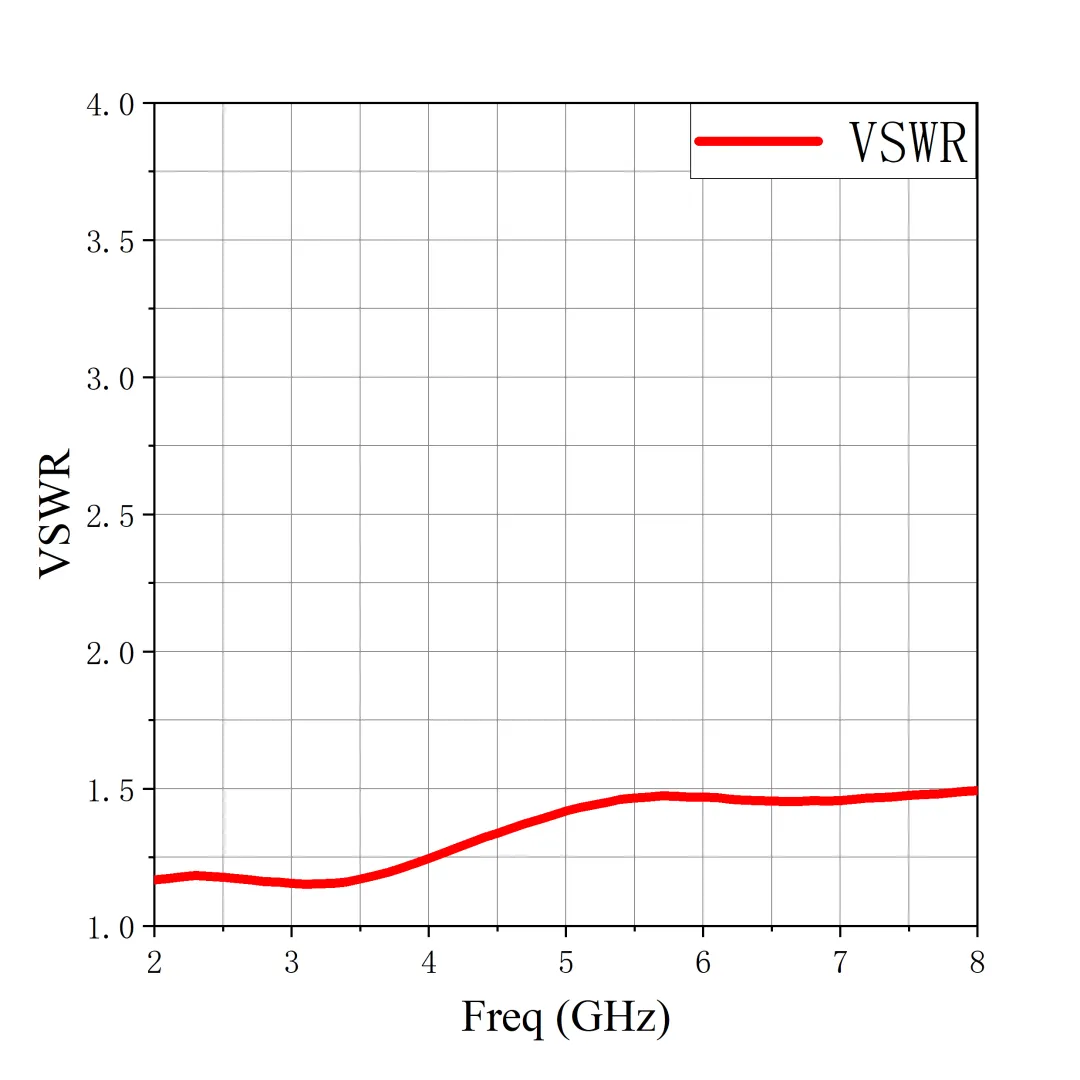

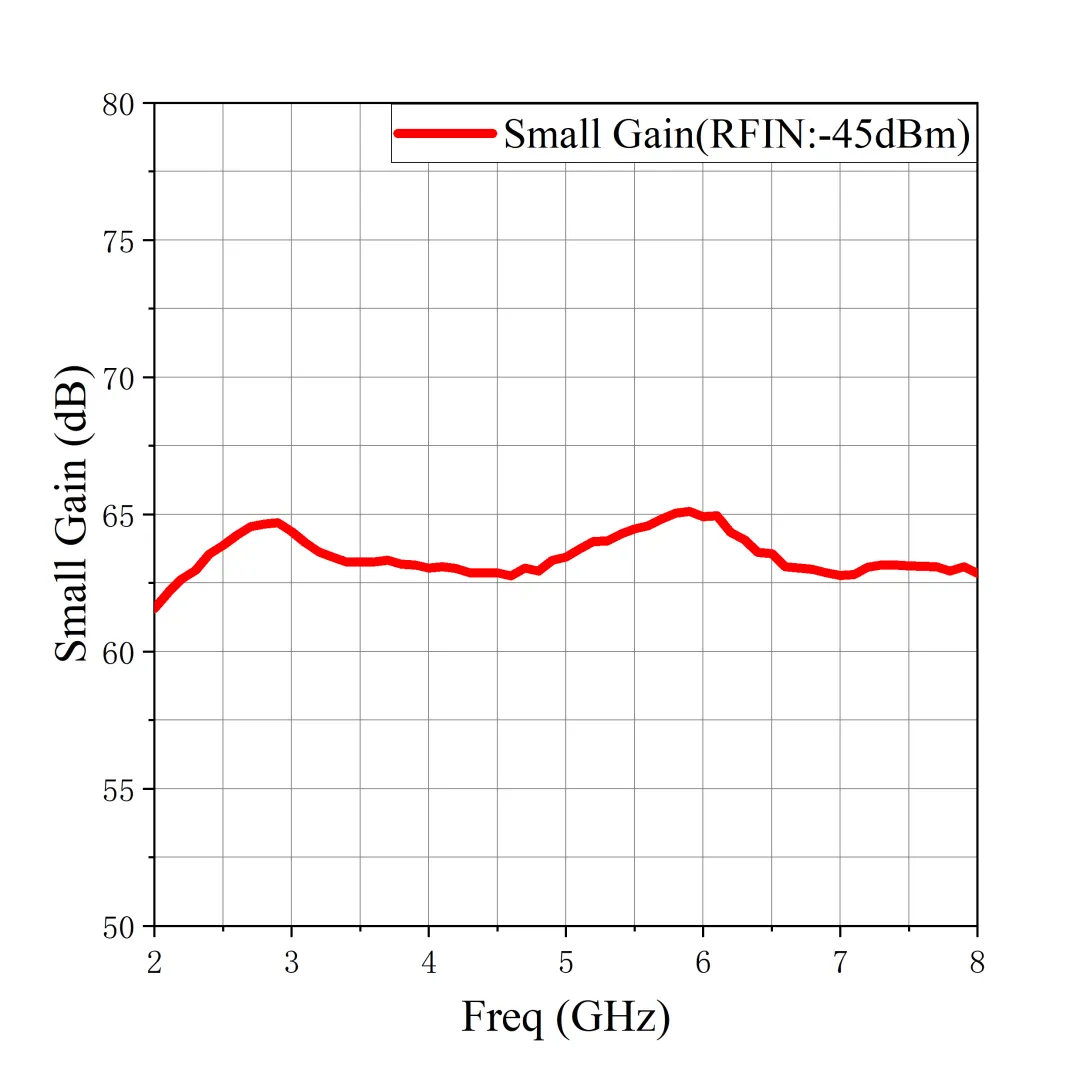

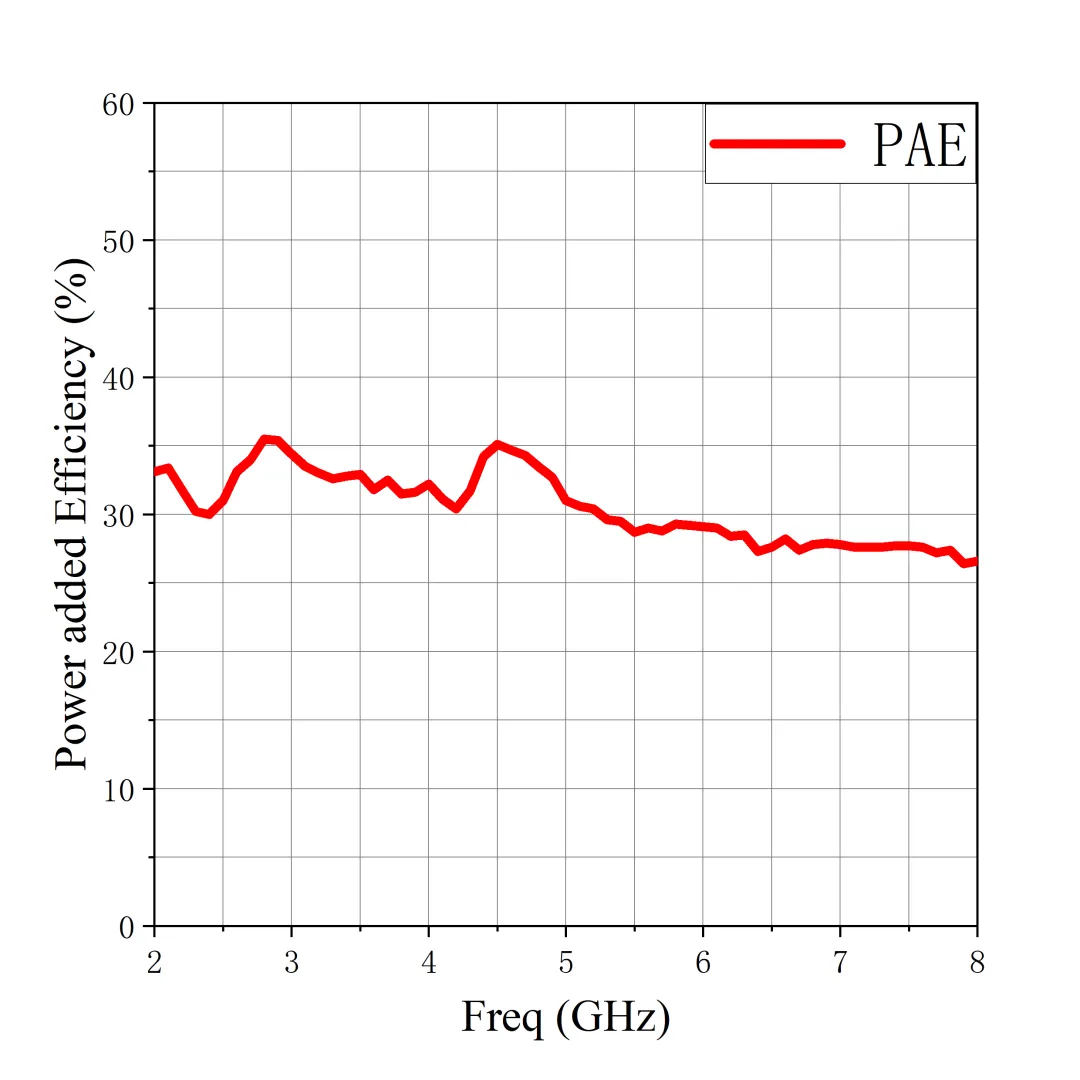

典型测试结果Typical Test Results
